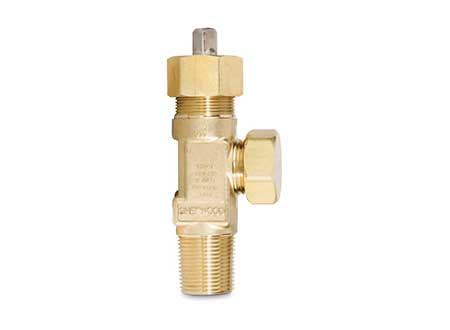

1210 & 1214 Series Chlorine Gas Valves
Sherwood 1210 & 1214 Series valves are used in cylinder, manifold, and ton containers for chlorine service. Valves are designed and manufactured in accordance with Chlorine Institute Pamphlet 17.
Key Features & Benefits
- Heavy-duty forged aluminum silicon bronze for durability and resistance to corrosion in very harsh environments.
- Approved per the Chlorine Institute Pamphlet 17 Alternate Design Criteria
- One-piece Monel® stem offers exceptional durability and positive shut-off in chlorine and other corrosive gas service
- Choice of PTFE or Garlock® 6130 packing for easy operation and durable leak-resistant stem seal
- Replacement parts available for field service rebuild
- Available in large packing nut design for improved strength for challenging service requirements
- Accessories available: Cylinder and ton container fuse plugs, flex lines, wrenches, tools and adapters
| Design Specifications | |
|---|---|
| Working pressure | 0 - 500 PSI (34 bar) |
| Helium Leak Rate | 10-6 atm cc/sec |
| Operating Temperature Range | -50° F (-45°C) up to 149° F (65°C) |
| Materials | Aluminum Silicon Bronze C64210, PTFE, Monel, Brass C485 |
| Standard Accreditation | ISO 10297 – 2014, Chlorine Institute Pamphlet 17, CGA V9-2019 |
| Cv | 0.73 Cylinder valve; 1.88 Ton container valve |
