AV & AVHW Series Small Acetylene Valves
Sherwood AV & AVHW Series offers wrench and handwheel-operated acetylene valves for B & MC cylinders used in welding applications.
Key Features & Benefits
- Durable forged brass body, precisely machined internal components and design elements meet the most stringent international valve performance standards
- Fusible metal pressure relief device cast directly into valve body for maximum retainment and cylinder protection
- Available in handwheel offering for use in service without the need of wrench to operate
- Wrench operated have resilient packing design reduced the need for repetitive bonnet tightening
- All handwheel valves are designed with robust internal o-ring bonnet design
- Available in manifold version with red colored handwheel
| Design Specifications | |
|---|---|
| Working pressure | 0 - 500 PSI (34 bar) |
| Helium Leak Rate | 10-3 atm cc/sec |
| Operating Temperature Range | -50° F (-45°C) up to 149° F (65°C) |
| Materials | CDA 377 Brass, PTFE, Steel Zinc Plated, EPDM |
| Standard Accreditation | ISO 10297- 2014, CGA V9-2019 |
| Cv | 0.15, Standard (.078” thru hole) |
Product Literature
AVHW series handwheel acetylene valves

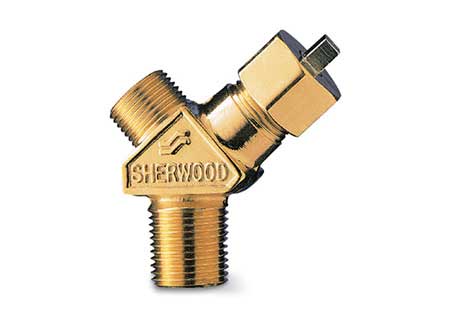

AV series wrench operated acetylene valves
